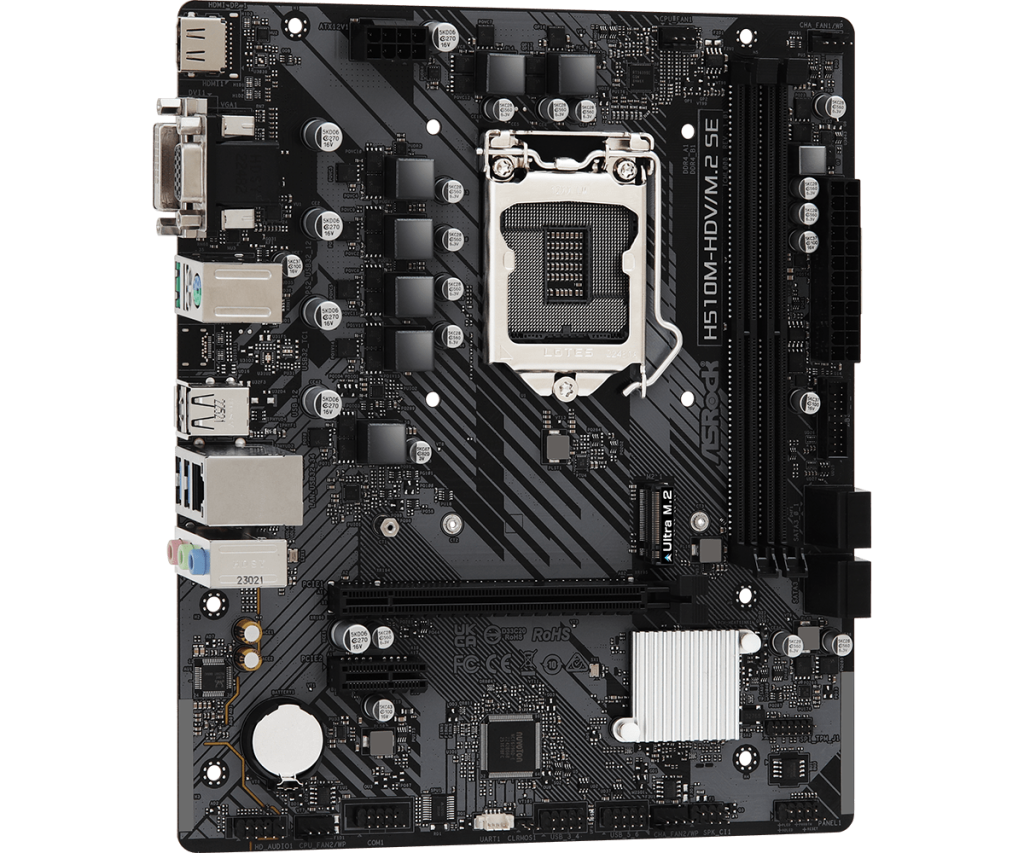

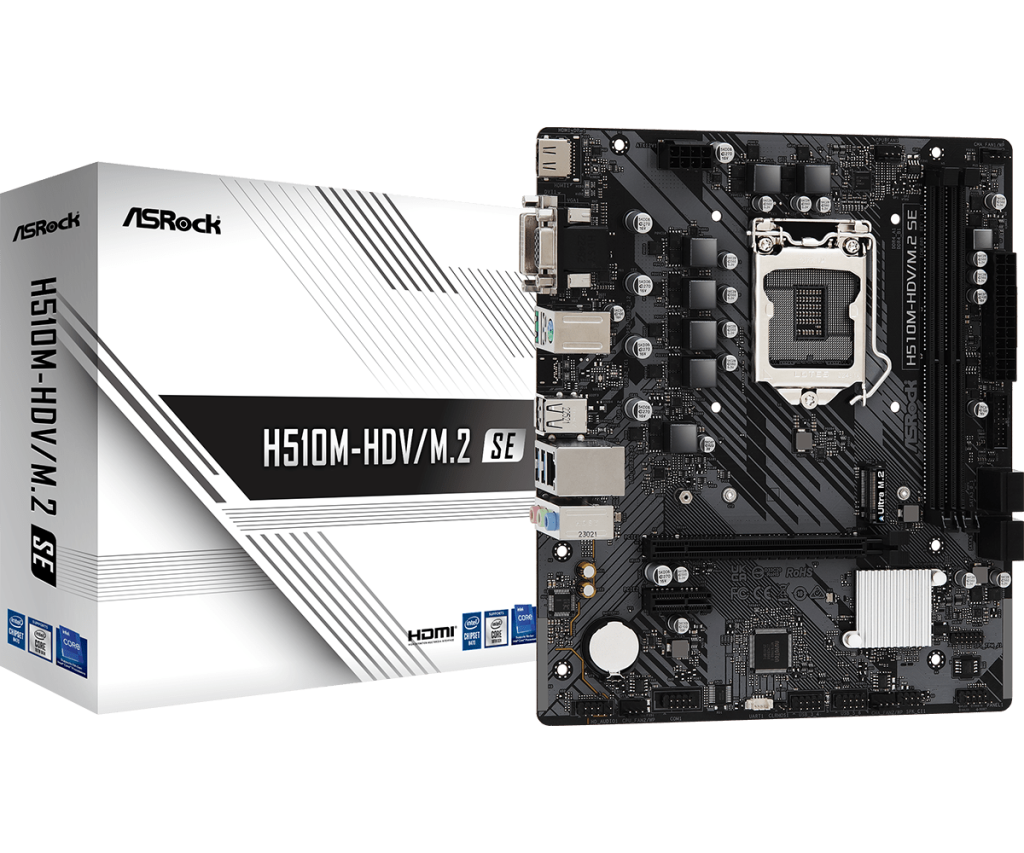

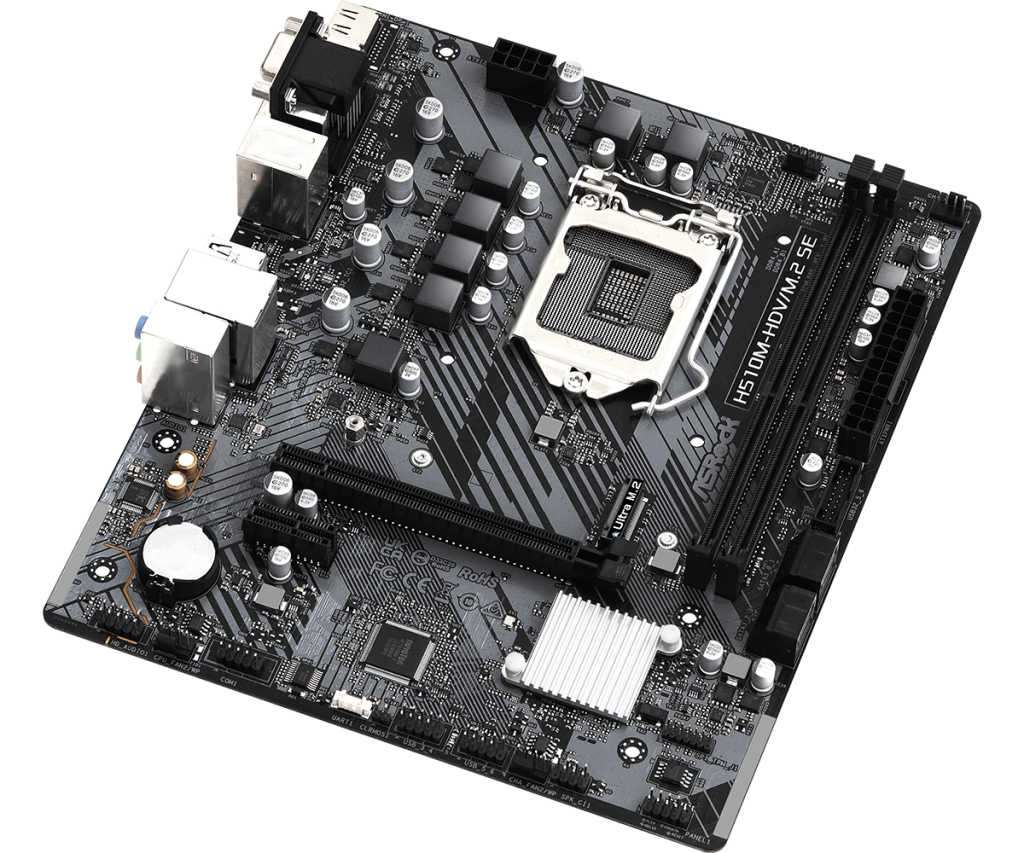

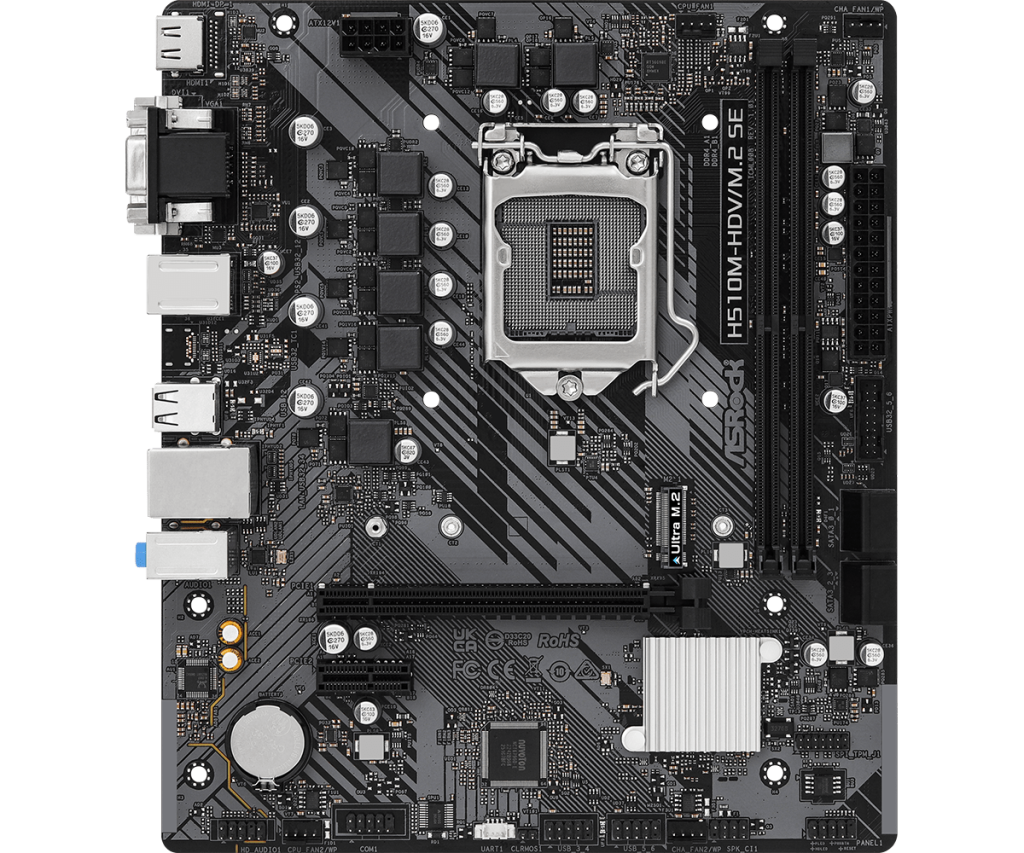

Дънна платка ASROCK H510M-HDV/M.2 SE, LGA1200, DDR4, PCIe 4.0, (DVI/VGA/HDMI), 4x SATA3 6Gb/s, 1x M.2 PCIe 3.0, mATX
Дънна платка ASROCK H510M-HDV/M.2 SE, LGA1200, DDR4, PCIe 4.0, (DVI/VGA/HDMI), 4x SATA3 6Gb/s, 1x M.2 PCIe 3.0, mATX
Дънна платка ASROCK H510M-HDV/M.2 SE, LGA1200, DDR4, PCIe 4.0, (DVI/VGA/HDMI), 4x SATA3 6Gb/s, 1x M.2 PCIe 3.0, mATX
Дънна платка ASROCK H510M-HDV/M.2 SE, LGA1200, DDR4, PCIe 4.0, (DVI/VGA/HDMI), 4x SATA3 6Gb/s, 1x M.2 PCIe 3.0, mATX
Дънна платка ASROCK H510M-HDV/M.2 SE, LGA1200, DDR4, PCIe 4.0, (DVI/VGA/HDMI), 4x SATA3 6Gb/s, 1x M.2 PCIe 3.0, mATX
Дънна платка ASROCK H510M-HDV/M.2 SE, LGA1200, DDR4, PCIe 4.0, (DVI/VGA/HDMI), 4x SATA3 6Gb/s, 1x M.2 PCIe 3.0, mATX

Дънна платка ASROCK H510M-HDV/M.2 SE, LGA1200, DDR4, PCIe 4.0, (DVI/VGA/HDMI), 4x SATA3 6Gb/s, 1x M.2 PCIe 3.0, mATX

SKU: H510M-HDV/M.2 SE
ID: #30730
Цена: 123,00 лв.
62,89 €
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
CPU Socket: Intel LGA1200
Чипсет: Intel H510
Максимален капацитет RAM памет: 64 GB
Поддържана памет: DDR4
M.2 слот: 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
Graphics технология: Няма
Мрежа: 1 Ethernet
Wi-Fi Mодул: Не
HDMI: 1
DVI: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • CPU
    - Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
    - Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    - Intel® H470
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM Slots
    - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
    10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    - 1 x HDMI
    Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
    Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz
    - 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60Hz
    - 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    Graphics specifications may vary between CPU types.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Realtek 8111H
  • Slots
    Intel® 11th Gen & 10th Gen Processors:
    - 1 x PCIe 4.0 x16 Slot (PCIE1)*
    Intel® 11th Gen Processors support PCIe 4.0 x16
    Intel® 10th Gen Processors support PCIe 3.0 x16
    Intel® H470 Chipset:
    - 1 x PCIe 3.0 x1 Slot (PCIE2)*

    *Supports NVMe SSD as boot disks
  • Storage
    Chipset:
    - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    - 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
    - 6 x USB 2.0 (2 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x COM Port Header
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    *CPU_FAN1 supports the fan power up to 1A (12W).

    **CPU_FAN2/WP supports the fan power up to 2A (24W).

    ***CHA_FAN1~2/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

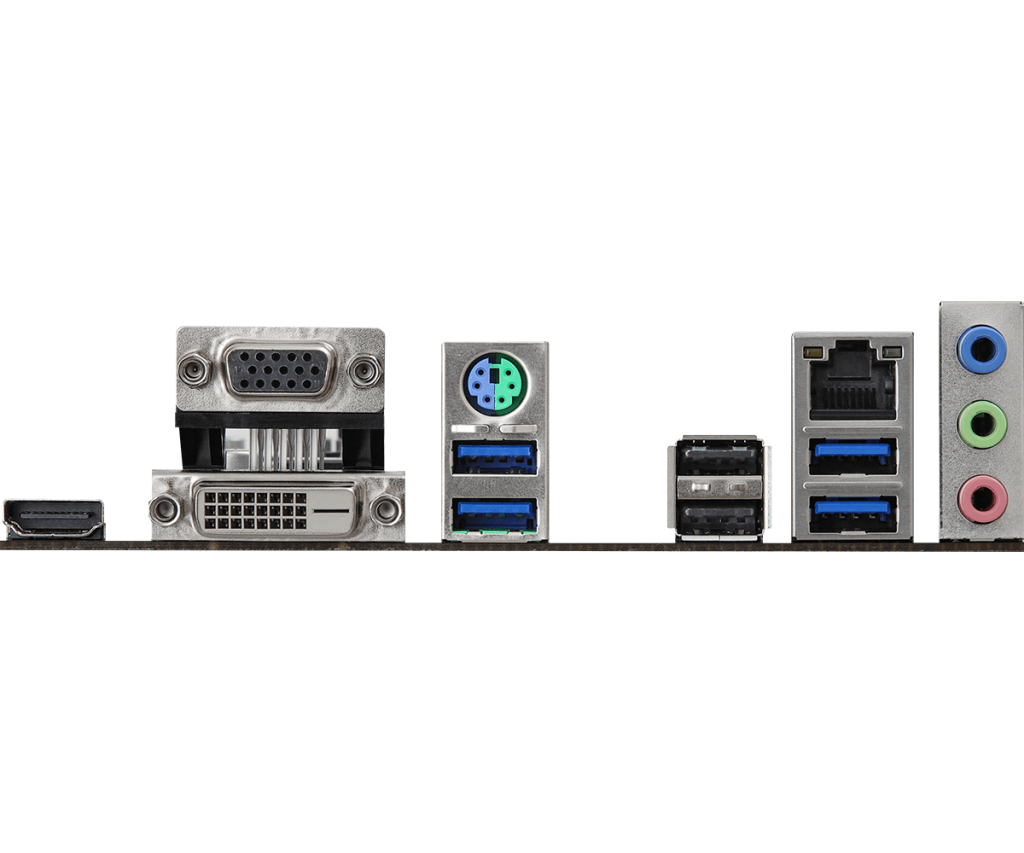

  • Rear Panel I/O
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 2 x USB 2.0 Ports
    - 4 x USB 3.2 Gen1 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 1 x I/O Shield
    - 2 x SATA Data Cables
    - 1 x Screw for M.2 Socket
  • Form Factor
    - Micro ATX Form Factor: 9.1-in x 7.8-in, 23.1 cm x 19.8 cm
