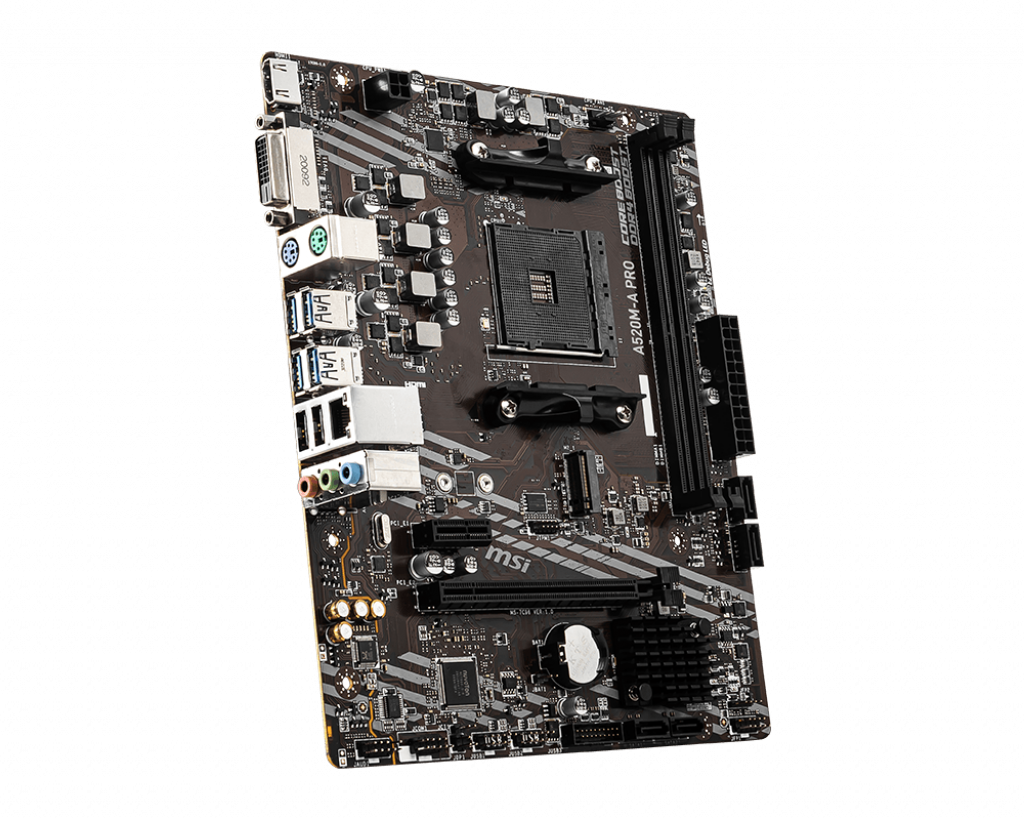

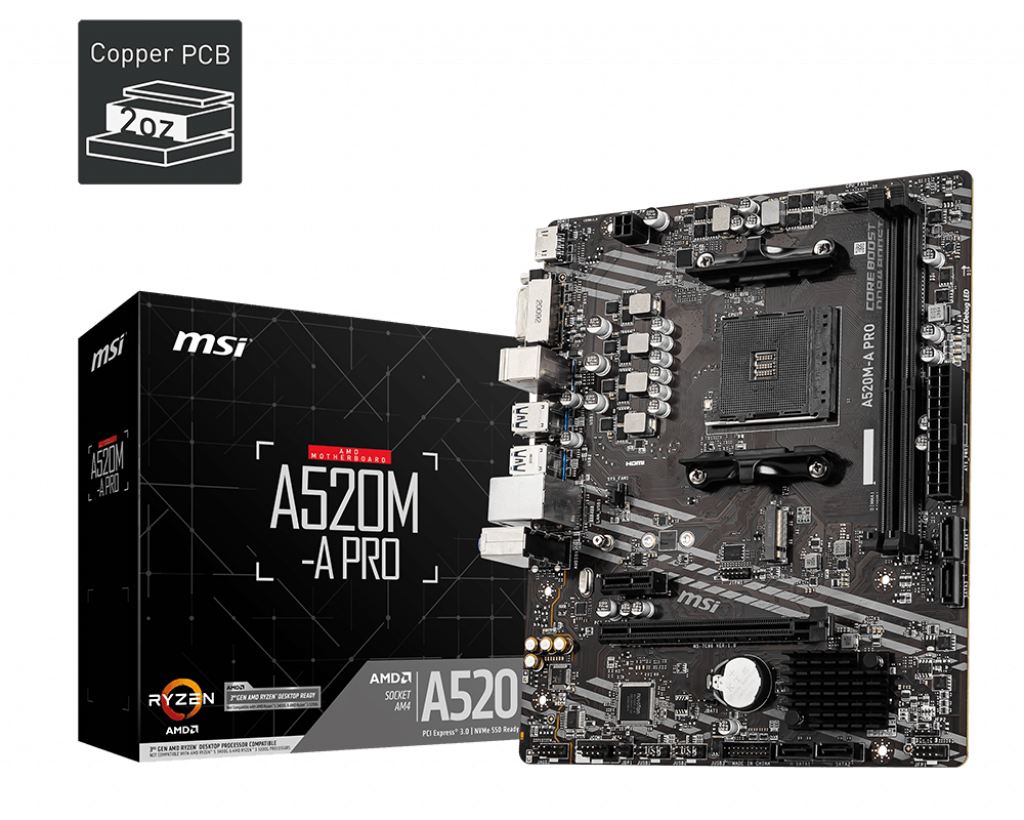

Дънна платка MSI A520M-A PRO AM4, A520, DDR4, PCIe (HDMI/DVI-D), 4x SATA 6Gb/s, M.2, USB 3.2, Micro ATX
топ продукт
Дънна платка MSI A520M-A PRO AM4, A520, DDR4, PCIe (HDMI/DVI-D), 4x SATA 6Gb/s, M.2, USB 3.2, Micro ATX
Дънна платка MSI A520M-A PRO AM4, A520, DDR4, PCIe (HDMI/DVI-D), 4x SATA 6Gb/s, M.2, USB 3.2, Micro ATX
Дънна платка MSI A520M-A PRO AM4, A520, DDR4, PCIe (HDMI/DVI-D), 4x SATA 6Gb/s, M.2, USB 3.2, Micro ATX

Дънна платка MSI A520M-A PRO AM4, A520, DDR4, PCIe (HDMI/DVI-D), 4x SATA 6Gb/s, M.2, USB 3.2, Micro ATX

SKU: A520M-A PRO
ID: #30045
Цена: 112,00 лв.
57,26 €
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: AMD AM4 Socket for AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
CPU Socket: AMD AM4
Чипсет: AMD A520
Максимален капацитет RAM памет: 64 GB
Памет, слотове: 2 slots
M.2 слот: 1x M.2 slot
Поддръжка на RAID: SATA RAID 0, 1, 10
Мрежа: 10/100/1000 Mbps
Wi-Fi Mодул: Не
HDMI: 1
DVI: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • CPU
    Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors

    CHIPSET
    AMD A520 Chipset

    MEMORY
    2x DDR4 memory slots, support up to 64GB 1
    Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
    1DPC 1R max speed 4600 MHz
    1DPC 2R max speed 3866 MHz
    Dual channel memory architecture
    Supports non-ECC UDIMM memory
    Supports ECC UDIMM memory (non-ECC mode)
    Supports un-buffered memory

    EXPANSION SLOT
    1x PCIe 3.0 x1 slot 1
    1x PCIe x16 slot
    The supported specification depends on installed processor.

    ONBOARD GRAPHICS
    1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz12
    Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3
    1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
    Maximum shared memory of 16 GB
    Available for the processor with integrated graphics.Graphics specifications may vary depending on the CPU installed.

    STORAGE
    AMD A520 Chipset
    4x SATA 6Gb/s ports
    1x M.2 slot (Key M) (from AMD Processor)
    Supports PCIe 3.0 1
    Supports SATA 6Gb/s
    Supports 2242/ 2260/ 2280 storage devices
    The supported specification depends on installed processor.

    RAID
    Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

    USB
    AMD A520 Chipset
    2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
    6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
    AMD Processor
    4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

    AUDIO
    Realtek® ALC892/ALC897 Codec
    7.1-Channel High Definition Audio

    LAN
    1x Realtek® RTL8111H Gigabit LAN controller
    INTERNAL CONNECTORS
    1x 24-pin ATX main power connector
    1x 4-pin ATX 12V power connector
    4x SATA 6Gb/s connectors
    1x M.2 slots (M-Key)
    1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    1x 4-pin CPU fan connector
    1x 4-pin system fan connectors
    1x Front panel audio connector
    2x System panel connectors
    1x Chassis Intrusion connector
    1xTPM module connector
    1x Clear CMOS jumper

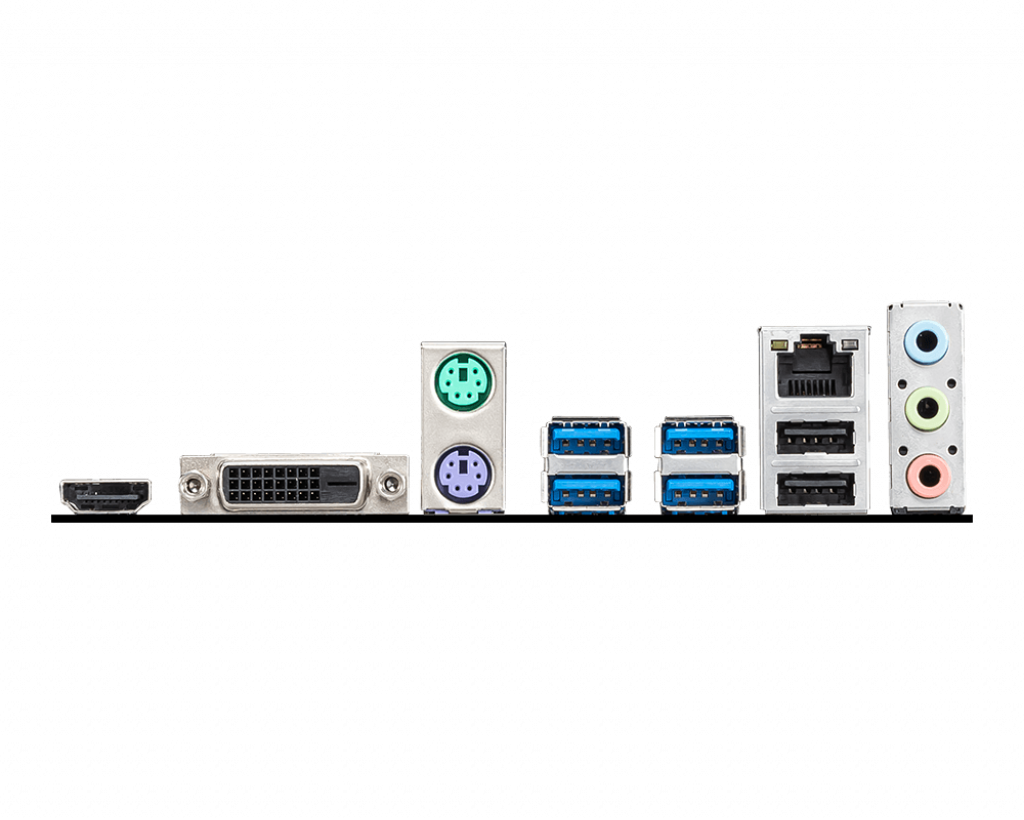

    BACK PANEL PORTS
    LAN port
    HDMI
    DVI-D
    Keyboard / Mouse
    USB 3.2 Gen 1 5Gbps Type-A
    USB 3.2 Gen 1 5Gbps Type-A
    USB 2.0 Ports
    Audio Connectors
    A520M-A Pro

    DIMENSIONS
    Micro-ATX Form Factor
    9.3 in. x 7.9 in. (23.6 cm x 20 cm)
