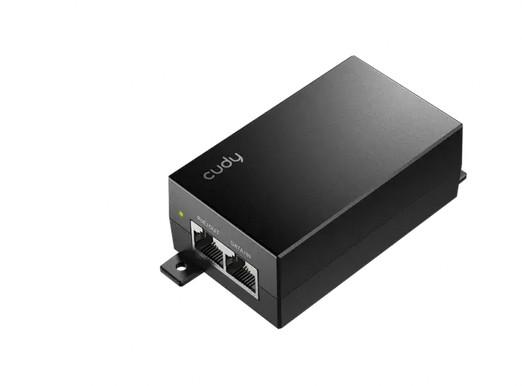

PoE адаптер Cudy POE48-18W, Gigabit PoE+/PoE, 18W, 2 x 10/100/1000Mbps
нов продукт
PoE адаптер Cudy POE48-18W, Gigabit PoE+/PoE, 18W, 2 x 10/100/1000Mbps

PoE адаптер Cudy POE48-18W, Gigabit PoE+/PoE, 18W, 2 x 10/100/1000Mbps

SKU: POE48-18W
ID: #44726
Наличен
Цена: 14,00 €
27,38 лв.
Цената е с вкл. ДДС

Характеристики

PoE: Да
Захранване: 54 VDC
Работна температура: 0 до 40°C
Портове: Uplink Stream - 1 x GbE, Downlink Stream - 1 x GbE, Passive PoE
Гаранция (месеца): 24

Бърза Поръчка

Описание



Model Version POE48-18W 1.0
Protocols 802.3 Protocols
  • 802.3i 10 Mbps over Twisted Pair
  • 802.3u 100 Mbps over Twisted Pair
  • 802.3ab 1 Gbps over Twisted Pair
PoE Uplink Stream 1× GbE
  Downlink Stream 1× GbE, Passive PoE
  Downlink Pin Assignment Mode B
  Transimission Distance
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment
Interfaces LED Power
  Power Interfaces AC Inlet
Power Power Methods AC
  Power Input 100-240V~ 50/60Hz 0.5A
  Max Power Output 18W, 48V⎓0.38A
Reliability Power Protection
  • Surge Protection
  • ESD Protection
  • Overvoltage Protection
  • Short-Circuit Protection
  EMC IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: Power: DM 2kV, CM 2kV; RJ45: CM 4kV
  Grounding Methods Three-Prong Plug
  Safety IEC/EN 62368
  Environment Ambient Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~95% non-condensing
Certifications FCC, CE, CCC
Mechanical Installation
  • Desktop
  • Wall-mount
  Dimension Main Part:
80.1×48.9×31.9 mm
3.15×1.93×1.26 inches
Each Bracket:
9 mm
0.35 inches
  Casing Material Plastic
  Product Weight 83.5 g (2.95 oz.)
Package Content
  • POE48-18W
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information Retail Package Dimension 175×63×57 mm
6.89×2.48×2.24 inches
  Retail Package Weight EU: 245.2 g (8.65 oz.)
  Units per Carton 40
  Carton Net Weight EU: 9.8 kg (21.61 lbs)
  Carton Gross Weight EU: 10.4 kg (22.93 lbs)
  Carton Dimension 37.8×31×28 cm
14.88×12.2×11.02 inches

https://www.cudy.com/en-eu/products/poe48-18w-1-0?_pos=1&_psq=POE48&_ss=e&_v=1.0#specs
