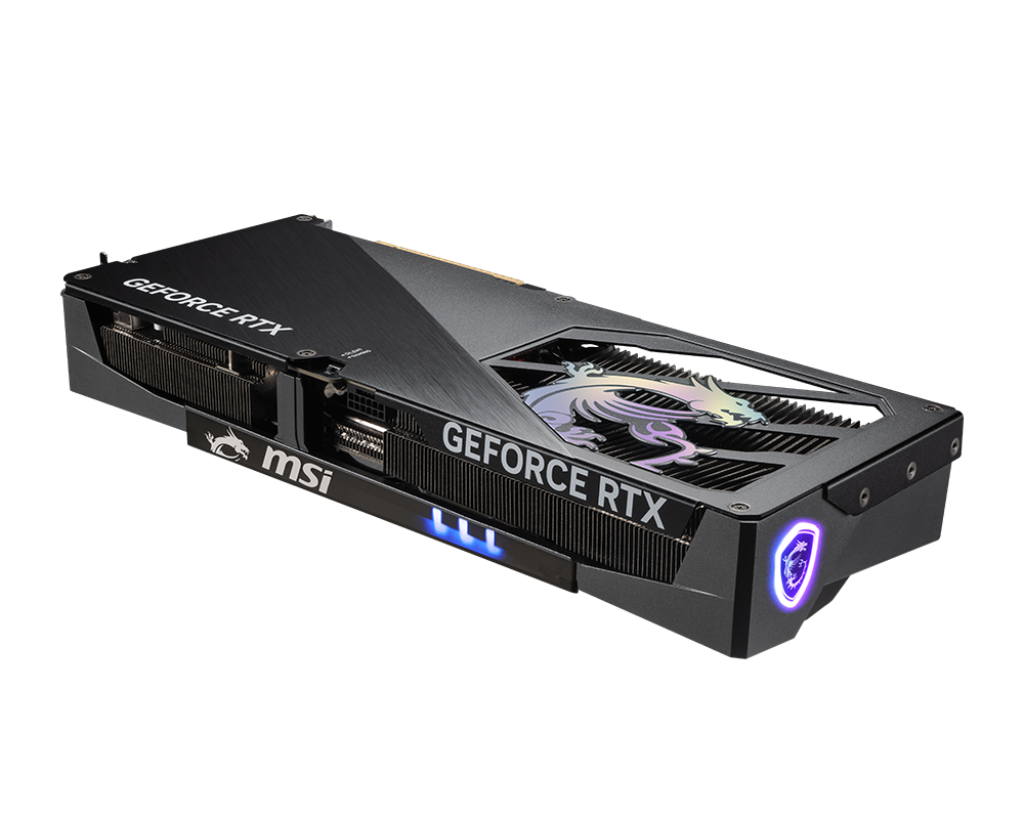

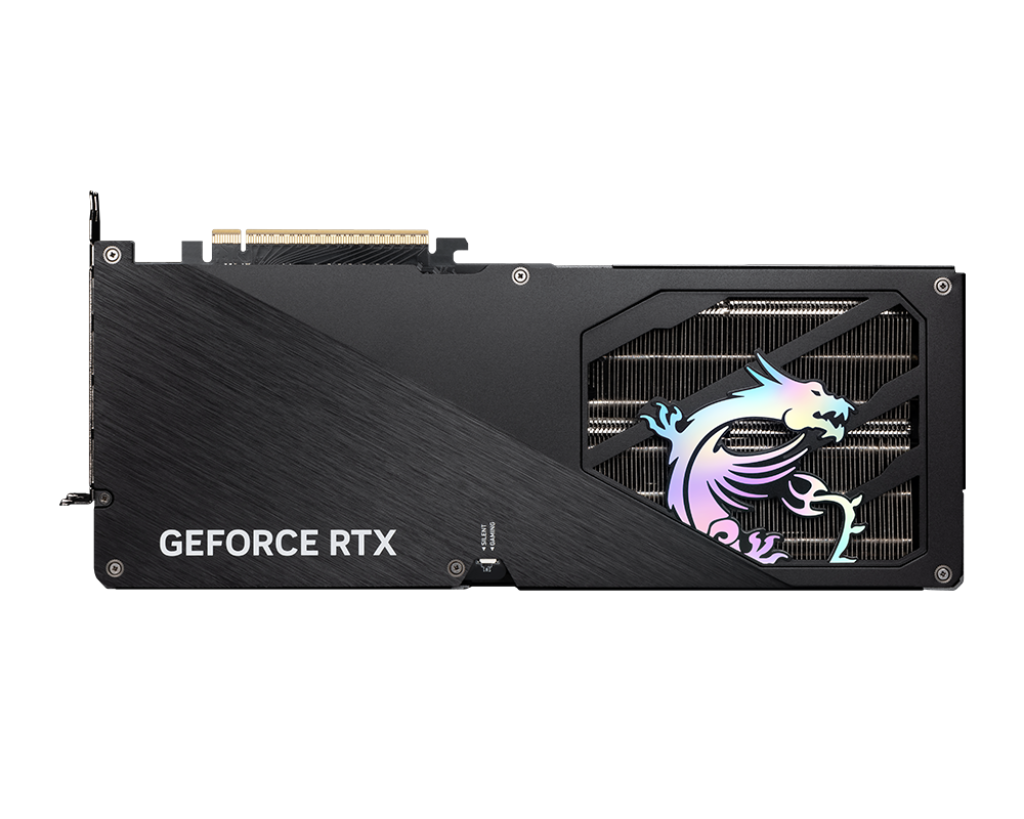

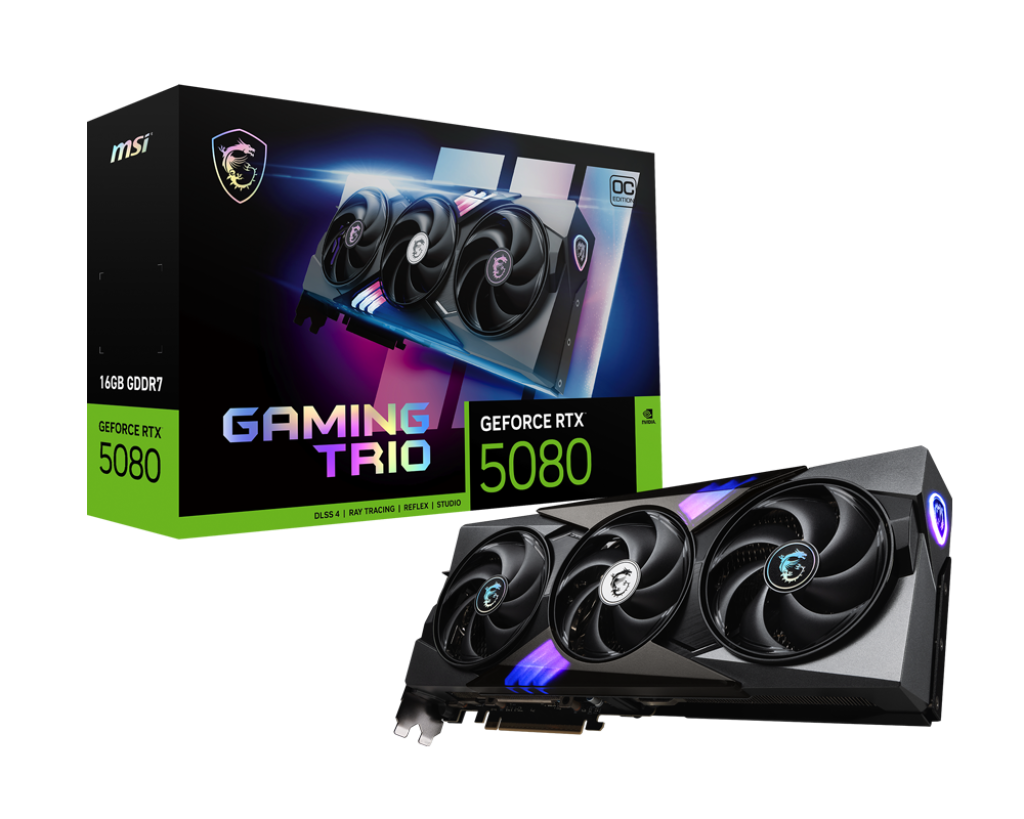

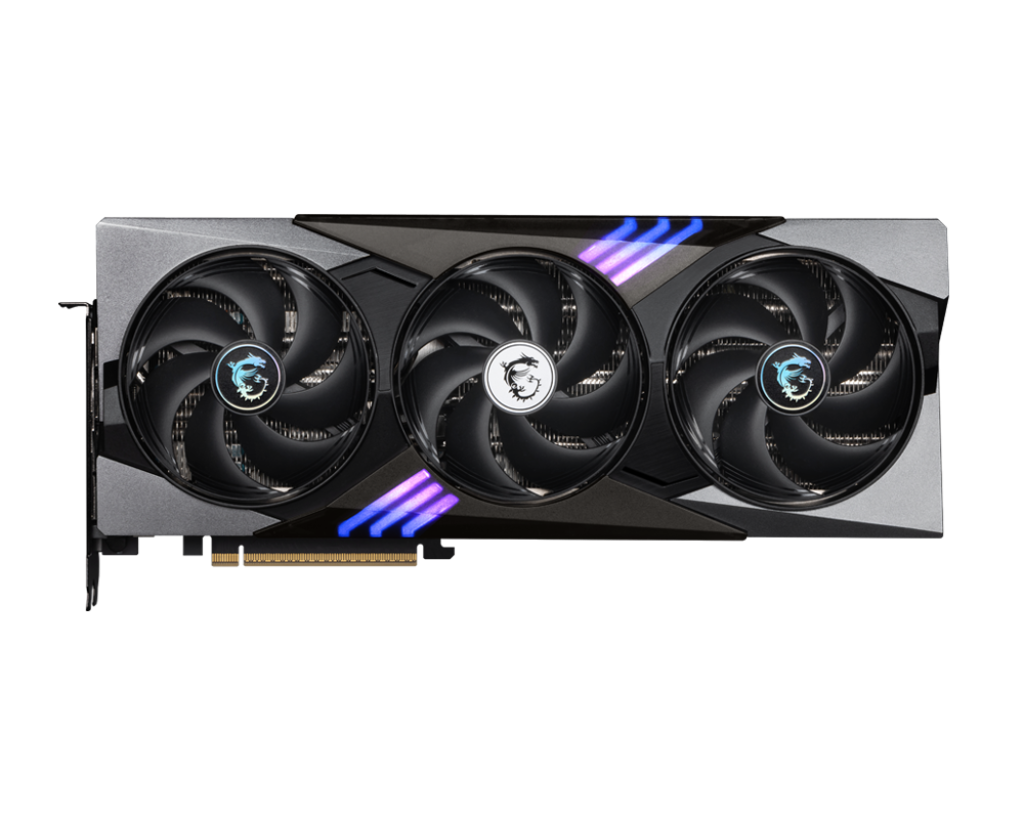

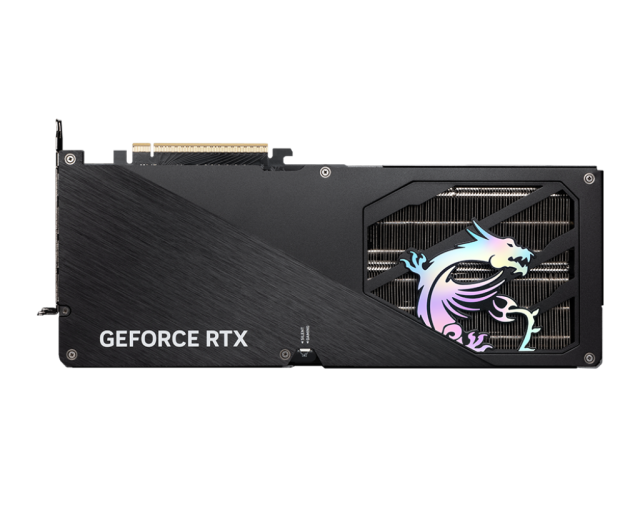

Marketing Name GeForce RTX™ 5080 16G GAMING TRIO
Model Name G5080-16GT
Graphics Processing Unit NVIDIA® GeForce RTX™ 5080
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2625 MHz (MSI
Center)
Boost: 2617 MHz (GAMING & SILENT Mode)
CUDA® CORES 10752 Units
Memory Speed 30 Gbps
Memory 16GB GDDR7
Memory Bus 256-bit

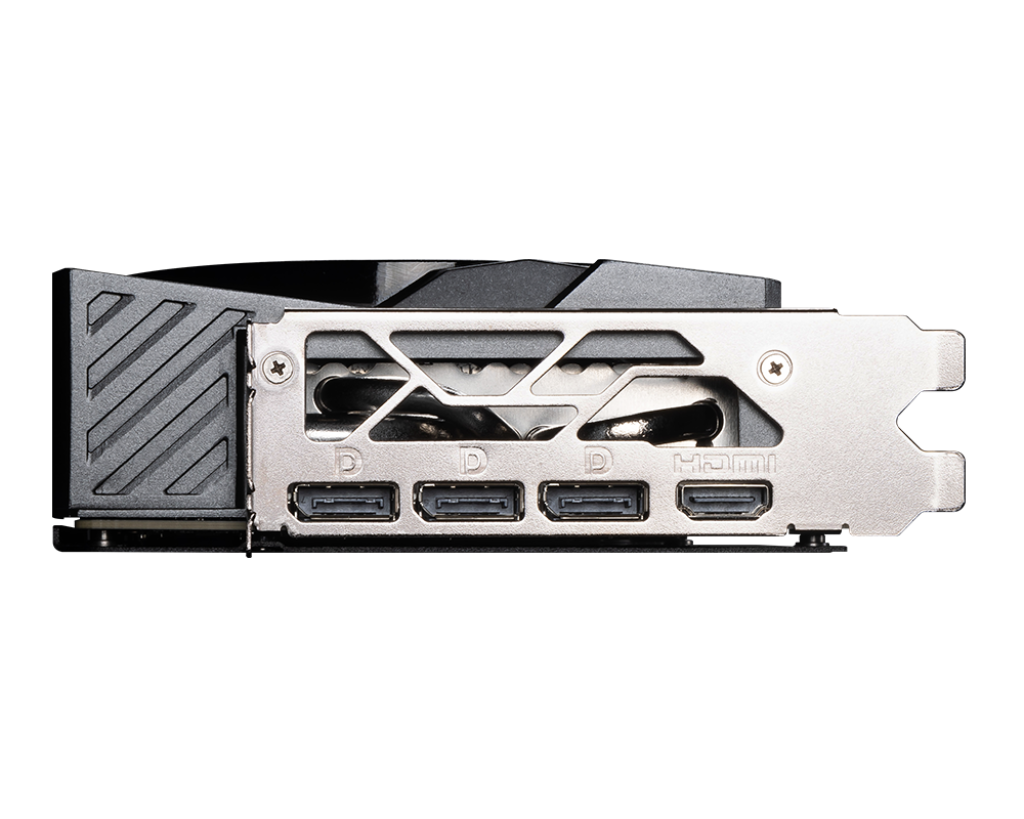

Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming
VRR, HDR)
HDCP Support Y
Power consumption 360 W
Power connectors 16-pin x 1
Recommended PSU 850 W
Card Dimension (mm) 338 x 140 x 50 mm
Weight (Card / Package) 1362 g / 1885 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
