GPU
NVIDIA GeForce RTX 5060 Ti GPU
CUDA cores
4608
Video Memory
16GB GDDR7
Memory Bus
128-bit
Engine Clock
2602 MHz
Memory Clock
28 Gbps
PCI Express
PCI Express 5.0 x8

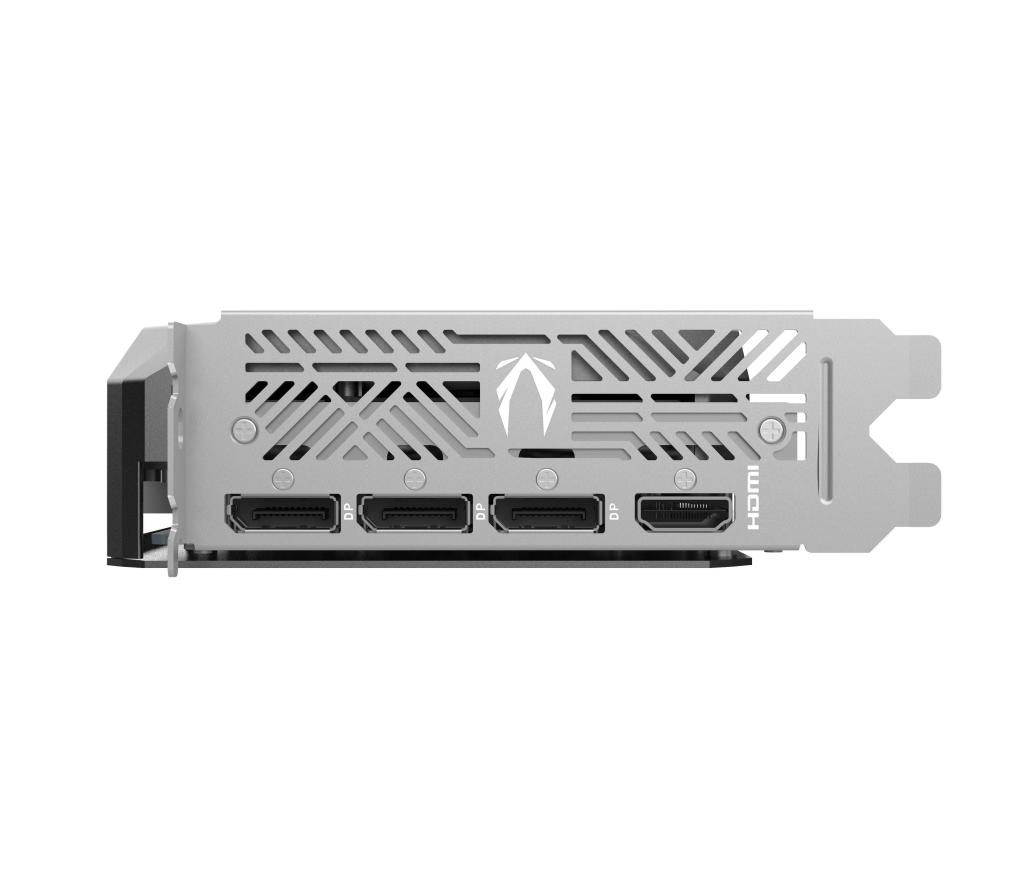

Display Outputs
3 x DisplayPort 2.1b with UHBR20
(up to 4K 480Hz or 8K 165Hz with DSC)
1 x HDMI® Connector
(Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification)
HDCP Support
2.3
Multi Display Capability
Quad Display
Recommended Power Supply
600W
Power Consumption
180W
Power Input
1 x 8-pin power input
DirectX
Microsoft DirectX® 12 Ultimate
OpenGL
4.6

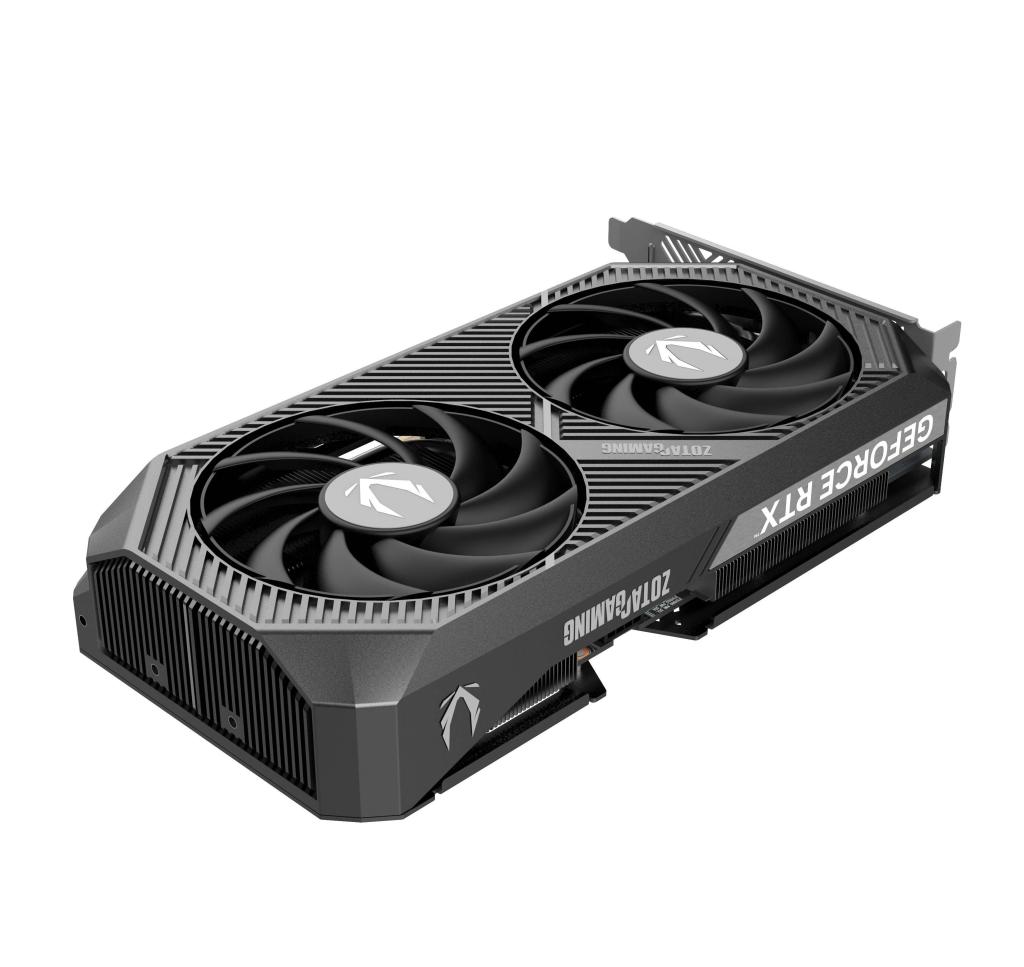

Cooling
IceStorm 2.0
Slot Size
2
SLI
No
Supported OS
Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Card Length
220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"
