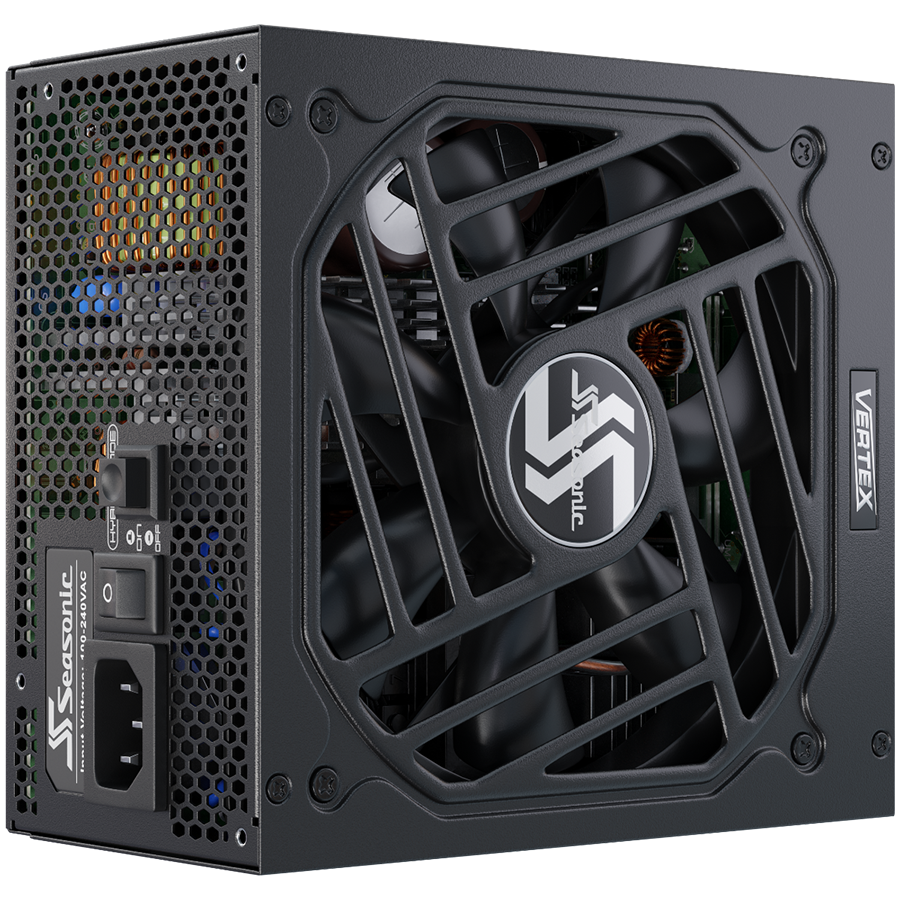

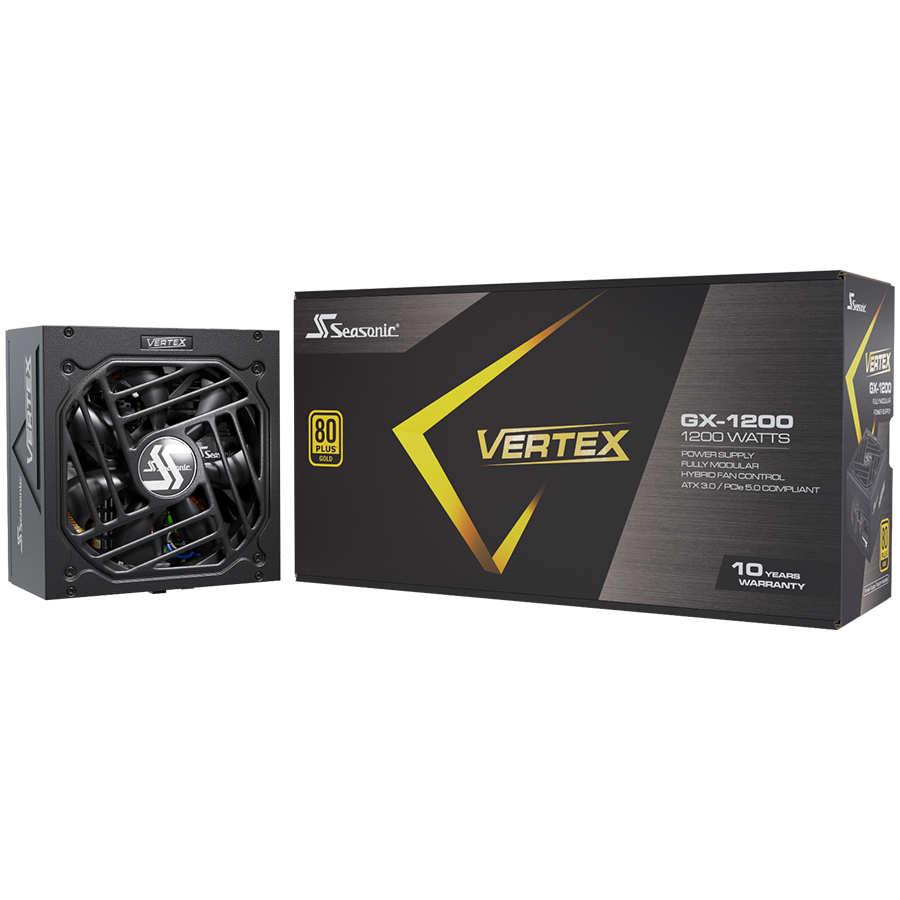

Захранване Seasonic VERTEX GX-1200 Gold, ATX 3.0, 80 PLUS GOLD, 135mm FDB Fan, Fully Modular, PCIe Gen 5 Cable (12VHPWR) included

80PLUS^®

Gold

Cybenetics Efficiency Level

Gold (See report)

Cybenetics Noise Level

Lambda A- (See report)

Form Factor

Intel ATX 12 V

Dimensions

160 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information

Fan Size

135 mm

Fan Control

Digital Fan Control

Fan Bearing

Fluid Dynamic Bearing

Life Expectancy

50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information

Modularity

Fully Modular

Cable type

Flat black cables

Electrical Features

Operating Temperature

0 - 50 °C

MTBF @ 25 °C, excl. fan

100,000 hours

AC Input

Full Range

Protection

OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental

Safety and EMC

cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance

Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty

10 Years

AC Input

Voltage: 100 V - 240 V

Current: 15 - 7.5 A

Frequency: 50 Hz - 60 Hz

DC Output

Rail

+3.3 V

+5 V

+12 V

-12 V

+5 VSB

Maximum Power

25 A

25 A

100 A

0.3 A

3 A

125 W

1200 W

3.6 W

15 W

Total continuous power

1200 W

MB (24/20 pins)

1

610

1

CPU (8/4 pins)

1

700

2

PCIe (8/6 pins)

2

750

0

PCIe (8/6 pins)

1

750

3

SATA

4

950

0

SATA

4

950

4

SATA

4

760

0

SATA 3.3

2

550

1

SATA

2

570

0

SATA

2

470

0

SATA 3.3

2

550

0

Molex

3

690

1

Molex

2

470

0

Molex to SATA 3.3 Adapter

2

300

0

Molex to FDD Adapter

1

101

0

12VHPWR

1 (16 Pins to 16 Pins)

750

1
